Garden sheds often face temperature extremes—freezing in winter and sweltering in summer. Without insulation, this can limit their usability and risk damage to stored items. Insulating your shed provides several benefits:

• Temperature Regulation: Keep your shed warm during the winter and cool in the summer.
• Moisture Control: Prevent dampness that can lead to rust, mold, and mildew.
• Extended Lifespan: Protect the shed structure and its contents from weather-related wear.

Preparation: Setting the Foundation for Insulation

Before adding insulation, the shed must be ready for the process. Proper preparation ensures the insulation lasts longer and performs effectively.

Step 1: Clear the Shed

Remove all items from your shed to provide a clean workspace and prevent accidental damage.

Step 2: Inspect for Damage

Check the walls, roof, and floor for gaps, cracks, or leaks. Seal any gaps with weatherproof caulking or expanding foam to create a solid barrier.

Step 3: Safety Precautions

Wear gloves, goggles, and a dust mask to protect yourself from insulation materials and debris.

Tip: If you don’t already have a shed or are planning to upgrade, consider starting with a model that’s easy to insulate and weatherproof. The Outsunny Wooden Small Shed is a compact and durable choice, ideal for organizing tools and insulating for seasonal use.

Choosing the Right Insulation Material

Selecting the correct insulation material depends on your budget, the shed’s construction, and your insulation goals. Here’s an overview:

Material	Pros	Cons	Cost
Fiberglass Batts	High thermal resistance, easy installation	Can irritate skin and lungs	Moderate
Foam Boards	Durable, moisture-resistant	Expensive, requires precise cutting	High
Reflective Foil	Affordable, ideal for hot climates	Limited insulation in cold weather	Low
Bubble Wrap	Inexpensive, easy to use	Minimal insulation for extreme weather	Low

Consider eco-friendly options like sheep’s wool for sustainability.

Wall Insulation Techniques

For Wooden Sheds

Wooden sheds are common and relatively easy to insulate due to their studded construction, which creates natural gaps for insulation placement. Follow these steps:

1. Install a Damp-Proof Membrane to Reduce Moisture

Prevents moisture from penetrating the wooden walls and damaging the insulation or the shed’s structure. Moisture can lead to mold growth, rot, and reduced insulation effectiveness.

• How to Apply:
  • Measure the inner wall dimensions and cut a damp-proof membrane (available in rolls).
  • Secure it to the wall studs using staples or adhesive. Ensure the membrane overlaps slightly at the seams to create a continuous barrier.

2. Fit Fiberglass or Foam Boards Between the Studs

• Material Choice:
  • Fiberglass: Affordable and highly effective at reducing heat transfer but requires careful handling to avoid irritation.
  • Foam Boards: Durable and moisture-resistant, making them ideal for sheds prone to dampness.

• How to Install:
  • Measure the distance between wall studs and cut the insulation to size using a utility knife.
  • Push the insulation snugly between the studs, ensuring there are no gaps. If using foam boards, secure them with adhesive for added stability.

3. Cover with Plasterboard or Plywood for a Polished Finish

Encases the insulation, protecting it from damage and enhancing the shed’s aesthetic appeal.

• How to Install:
  • Cut plasterboard or plywood to fit over the insulated walls.
  • Attach the boards to the studs using screws or nails. Plasterboard can be painted for a smooth, modern look, while plywood offers a more rustic, durable finish.

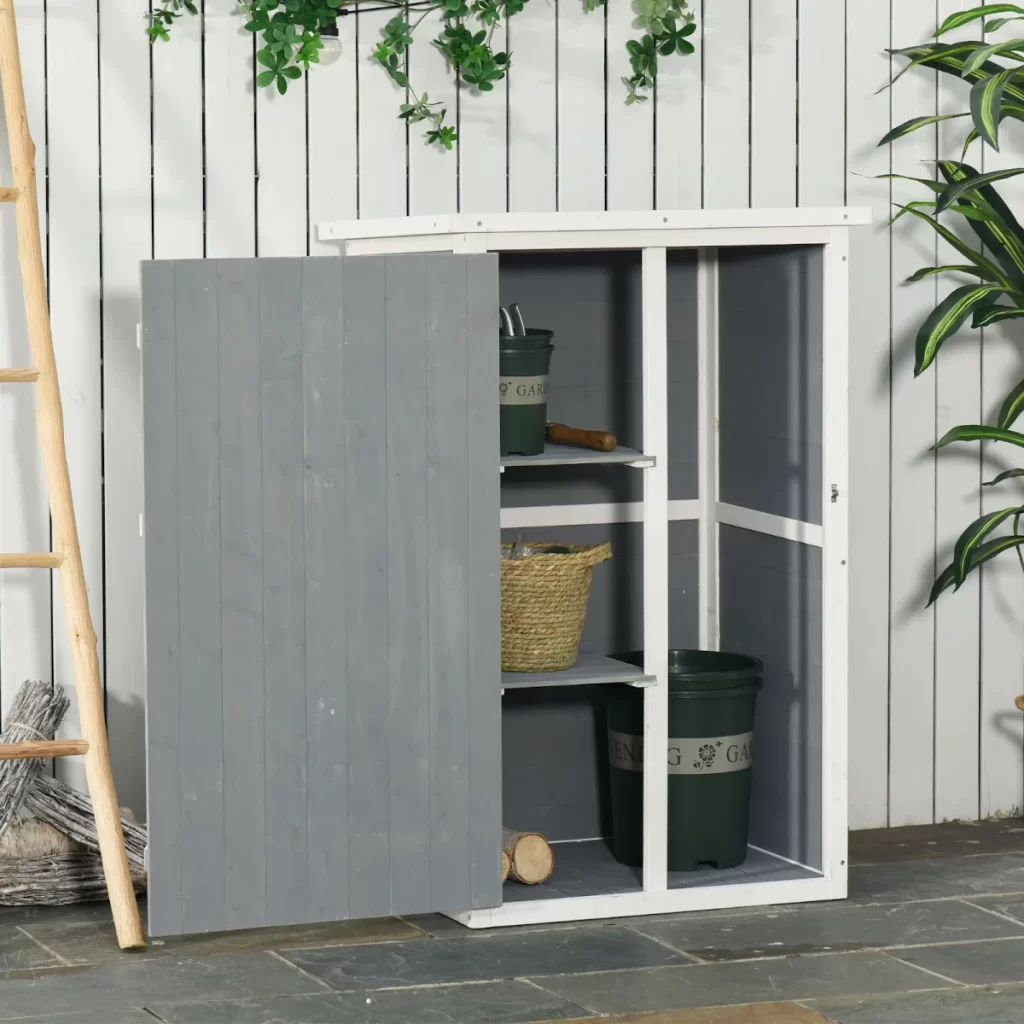

Pro Tip: Wooden sheds like the Outsunny 75L x 56W x 115H cm Fir Wood Shed (Natural) are perfect for DIY insulation. Their paneled design makes it easy to fit insulation snugly between studs and finish with plywood or plasterboard.

For Metal Sheds

Insulating metal sheds can be trickier due to their smooth surfaces and lack of built-in studs. However, the following steps ensure effective insulation:

1. Apply Adhesive to Secure Foam Boards Directly onto the Walls

Metal walls lack the wooden studs needed to hold insulation securely, so adhesive is essential for attachment.

• How to Apply:

  • Choose a strong, waterproof adhesive designed for metal surfaces.
  • Clean the metal wall to remove dirt or grease, ensuring the adhesive bonds effectively.
  • Apply adhesive to the back of foam boards and press them firmly onto the metal walls, holding them in place until secure.

2. Add Reflective Foil for Additional Thermal Efficiency

Reflective foil acts as a radiant barrier, reflecting heat away from the shed in summer and retaining warmth in winter.

• How to Apply:

  • Tape reflective foil over the foam boards, ensuring a tight fit.
  • Use foil tape to seal any seams for maximum thermal efficiency.

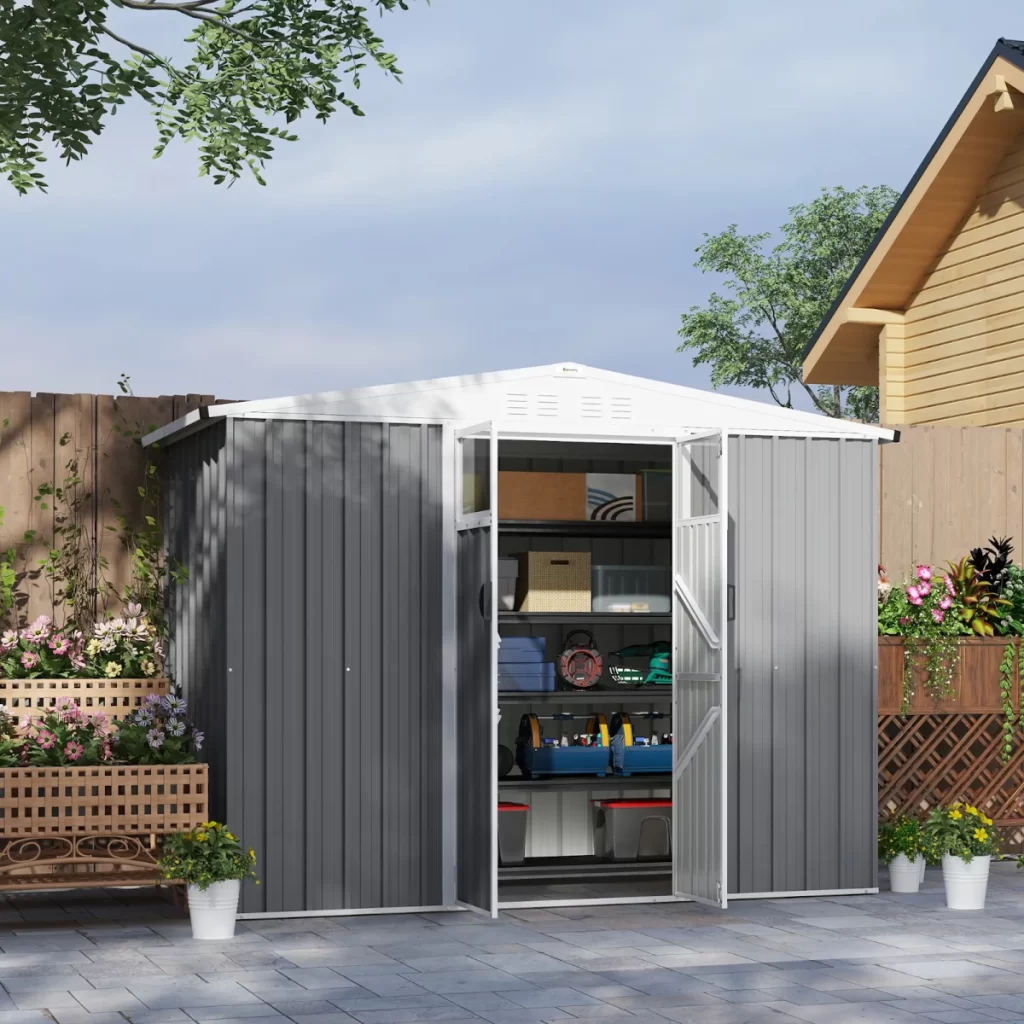

Tip: If you’re working with a metal shed like the Outsunny 8x4 ft Metal Garden Shed, adhesive foam board insulation combined with reflective foil can be highly effective. The built-in vents help regulate moisture and temperature, making insulation even more beneficial.

3. Use Bubble Wrap to Line the Walls

If you’re on a budget or need a quick solution, bubble wrap is an affordable alternative. Bubble wrap traps air pockets, which provide basic insulation against temperature fluctuations. While it’s not as effective as fiberglass or foam boards, it’s suitable for mild climates or temporary fixes.

• How to Apply:

  • Measure the shed walls and cut bubble wrap to size.
  • Attach it to the walls using a staple gun for wooden sheds or adhesive for metal sheds.
  • Overlap the edges of the bubble wrap to avoid gaps where heat might escape.

• Cover with Plywood for Added Durability

While bubble wrap provides basic insulation, it’s not durable on its own. Adding a layer of plywood not only protects the wrap but also improves the shed’s appearance and adds structural support.

Key Considerations

• Ventilation: Ensure proper ventilation in both wooden and metal sheds to prevent moisture buildup, especially when using airtight materials like foam boards.
• Safety: Handle fiberglass with gloves and a dust mask to avoid skin irritation and respiratory issues.
• Longevity: Wooden sheds benefit from regular checks for rot or gaps in the damp-proof membrane, while metal sheds require periodic rust prevention measures.

These techniques will help you achieve effective insulation, tailored to the specific challenges of wooden and metal shed construction. Let me know if you’d like further clarification or examples!

Roof Insulation

Roof insulation is one of the most critical aspects of insulating a garden shed. The roof is a primary area where heat escapes and moisture enters, making it essential to address for energy efficiency and structural longevity.

Benefits of Roof Insulation:

• Heat Retention: Prevents warm air from escaping during winter and reduces heat absorption in summer.

• Moisture Control: Reduces condensation, preventing mold, mildew, and water damage to the shed and its contents.

• Extended Durability: Protects the roof structure from weather-related wear, ensuring a longer lifespan.


Materials Needed

Selecting the right materials is crucial for effective roof insulation. Here’s a breakdown:

1. Fiberglass Batts or Foam Boards:
   • Fiberglass Batts: Affordable, lightweight, and provides excellent thermal insulation. Ideal for DIY use but requires safety precautions to avoid irritation.
   • Foam Boards: Durable and moisture-resistant, foam boards are a premium choice for roofs prone to dampness.
2. Damp-Proof Membrane:
   • Acts as a barrier to prevent moisture from penetrating the insulation or roof structure.
3. Adhesive and Plasterboard:
   • Adhesive: Used to secure insulation materials in place, particularly for smooth surfaces.
   • Plasterboard: Provides a clean, finished look while protecting the insulation.

Step-by-Step Guide

Step 1: Measure the Space Between Roof Studs

Accurate measurements ensure insulation materials fit snugly, minimizing gaps that can compromise thermal efficiency.

• How to Measure:
  • Use a tape measure to determine the distance between roof studs (the framing that supports the roof panels).
  • Note both the width and length to ensure precise cuts for insulation materials.

Step 2: Install a Damp-Proof Membrane

A damp-proof membrane prevents water vapor from reaching the insulation, reducing the risk of mold and deterioration.

• How to Install:
  • Cut the membrane to fit the roof area, leaving slight overlaps at the edges for full coverage.
  • Secure it to the roof studs using staples or adhesive.
  • Ensure there are no gaps or tears in the membrane.

Step 3: Fit Insulation Material Between the Studs

Properly fitted insulation materials trap heat effectively while leaving space for ventilation to prevent condensation.

• How to Fit:
  • For Fiberglass Batts:
    • Wear gloves and a mask to handle the material safely.
    • Cut the batts to size using a utility knife.
    • Push the batts gently into the space between the studs, ensuring they are snug but not compressed.
  • For Foam Boards:
    • Cut foam boards to size using a straightedge and knife.
    • Apply adhesive to the back of each board and press them firmly into place.

Step 4: Leave a Small Ventilation Gap

Ventilation gaps prevent moisture buildup, which can damage both the insulation and the roof.

• How to Maintain a Gap:
  • Leave a 2-inch space between the insulation and the roof surface.
  • Use spacers or pre-measured supports if necessary to ensure consistent gaps.

Step 5: Finish with Plasterboard

Plasterboard provides a professional, polished look while protecting the insulation from physical damage.

• How to Install:
  • Cut plasterboard sheets to match the roof dimensions.
  • Attach the plasterboard to the roof studs using screws.
  • Fill seams with joint compound for a seamless finish, and optionally paint the plasterboard for a decorative touch.

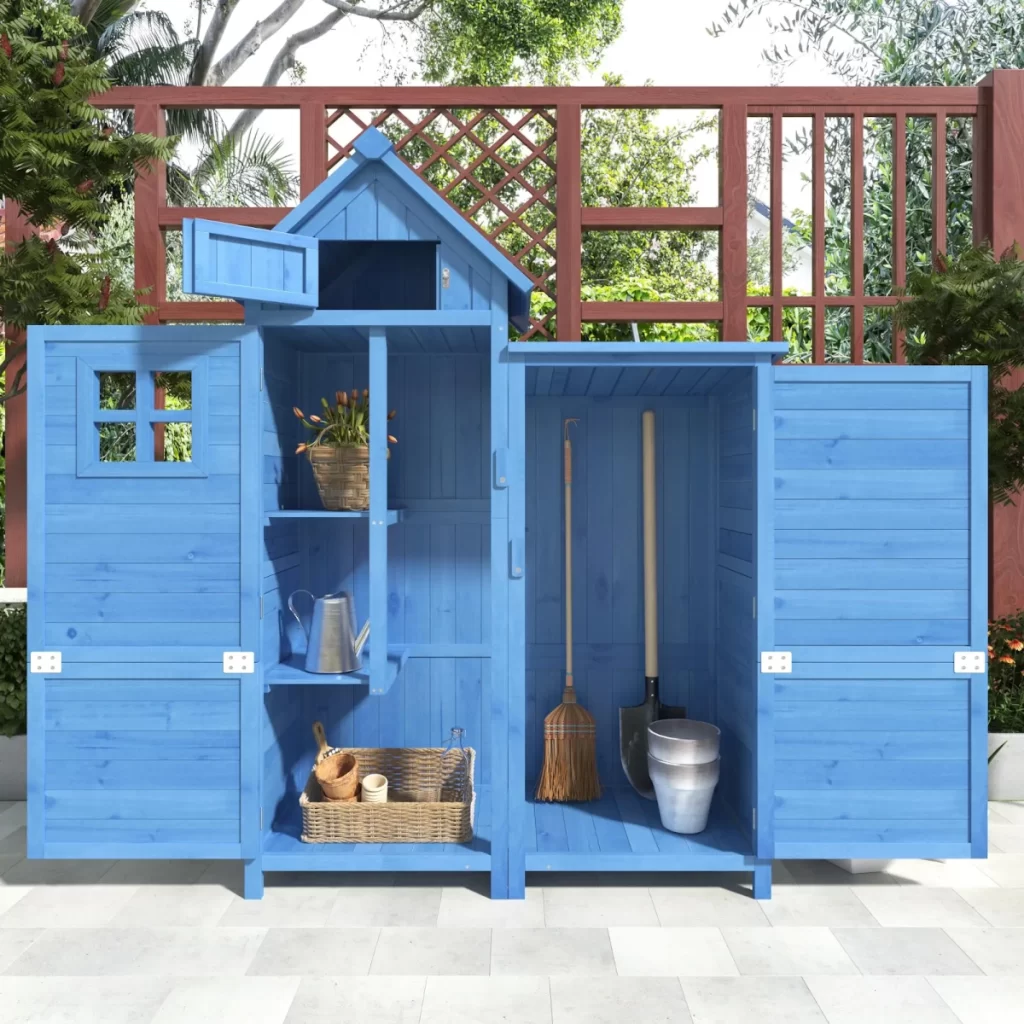

Tip: Another excellent roof-insulation-friendly model is the Weatherproof Wooden Tool Shed with PVC Roof. Its waterproof PVC roof and solid wood construction offer a reliable foundation for insulating the roof panels.

Floor Insulation

The floor is a significant area where heat can escape and moisture can infiltrate, especially if the shed sits directly on the ground. Proper insulation minimizes heat loss and ensures a stable, comfortable environment for activities like storage or work. However, insulating the floor slightly reduces the internal height of the shed.

Steps for Floor Insulation

1. Lay a Damp-Proof Membrane to Block Moisture

The damp-proof membrane acts as a barrier to prevent ground moisture from seeping into the shed. This is particularly important for sheds located in areas with high rainfall or damp soil.

• How to Apply:
  • Measure and cut the membrane to fit the floor area, ensuring it overlaps slightly at the edges.
  • Lay the membrane directly on the floor surface or the ground beneath the shed if it lacks a base.
  • Tape or seal the edges with waterproof tape to create a continuous barrier.

2. Place Rigid Foam Boards Over the Membrane

Foam boards provide excellent thermal resistance and are easy to handle and cut to size.

• How to Install:
  • Measure the floor dimensions and cut foam boards to fit snugly.
  • Lay the boards on top of the damp-proof membrane, ensuring full coverage with no gaps.
  • For added stability, apply adhesive to secure the boards in place if necessary.

3. Cover with Plywood or OSB for Stability

• Purpose: Plywood or oriented strand board (OSB) creates a durable surface that protects the insulation and provides a solid base for walking or placing heavy items.
• How to Install:

  • Measure and cut plywood or OSB sheets to match the floor dimensions.
  • Secure the sheets to the foam boards with screws, ensuring a tight fit to prevent movement.

Additional Tip:

• Use Carpets or Rugs:
  • Adding a layer of carpeting or rugs over the insulated floor enhances warmth and comfort, making the shed more inviting for activities like working or relaxing.
  • Rubber-backed mats are ideal for sheds exposed to moisture, as they resist dampness and provide a non-slip surface.

Door and Window Insulation

Doors and windows are common entry points for drafts, which can undermine the effectiveness of your insulation. Addressing these areas ensures better temperature control and reduces energy loss.

Methods for Door and Window Insulation

1. Weatherstripping

Creates a tight seal around door and window frames to block drafts and improve thermal efficiency.

• How to Apply:
  • Clean the frames to ensure the adhesive sticks well.
  • Measure and cut adhesive-backed weatherstripping to fit the edges of doors and windows.
  • Press the strips firmly into place, ensuring no gaps remain.

2. Draft Excluders

Prevent cold air from entering through gaps at the bottom of doors.

• How to Install:
  • Purchase a ready-made draft excluder or make your own using fabric and foam.
  • Position it along the base of the door, ensuring it sits flush with the floor to block drafts effectively.

3. Window Film

Adds an extra layer of insulation to glass panes, reducing heat transfer and improving energy efficiency.

• How to Apply:
  • Measure the windows and cut the film to size.
  • Apply the film to the glass, smoothing it out to remove air bubbles. Use a hairdryer to shrink the film for a tight fit.
  • Seal the edges with tape for added durability.

Moisture Control and Ventilation

While insulation is crucial for retaining heat, proper ventilation is equally important to prevent condensation, which can lead to mold, mildew, and structural damage.

Methods for Moisture Control and Ventilation

1. Install Vents Near the Roofline

Roof vents allow warm, moist air to escape, reducing the risk of condensation buildup.

• How to Install:
  • Choose vents designed for shed roofs, ensuring they are weatherproof.
  • Cut holes in the roof or walls near the top of the shed to fit the vents.
  • Secure the vents with screws and seal the edges with waterproof tape or caulking to prevent leaks.

2. Use Breathable Insulation Materials

Materials like fiberglass or reflective foil allow air to circulate while still providing effective insulation, preventing trapped moisture.

• How to Implement:
  • Avoid completely sealing the insulation layers; leave small gaps where airflow can occur.
  • Combine breathable insulation with venting solutions for optimal moisture management.

Cost Considerations and Vendor Recommendations

Here’s a rough breakdown of material costs:

Material	Cost (per m²)
Fiberglass Batts	£10
Foam Boards	£12–£15
Reflective Foil	£5–£8

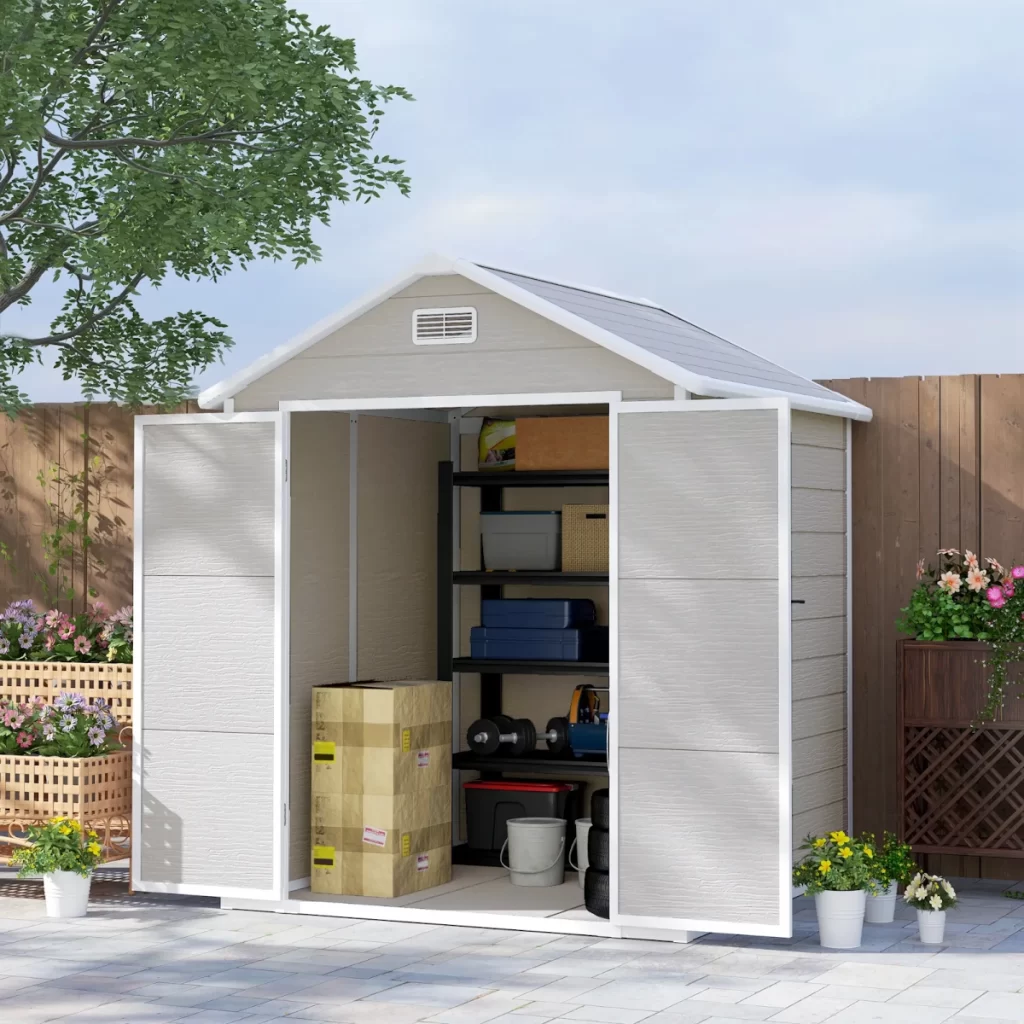

Tip: If you want a low-maintenance option that’s easy to keep clean and still insulates well, consider a resin model like the Outsunny 6x5 ft Plastic Shed. It comes with a floor, vents, and a window, all of which contribute to improved insulation and comfort.

With proper insulation, your garden shed can become a versatile, comfortable space for all seasons. Whether you’re storing tools, crafting, or relaxing, Aosom has the  garden sheds and solutions to make your vision a reality. Start your insulation journey today and enjoy the benefits for years to come.

---

FAQs

1. Can I insulate a garden shed without altering its appearance?
Yes, you can insulate a garden shed discreetly by using internal solutions like thin reflective foil or bubble wrap covered with plywood or plasterboard. This keeps the exterior look intact while enhancing thermal performance inside.

2. What if my shed has no internal studs, how do I attach insulation?
For sheds without studs, like many metal or plastic models, you can use strong adhesive to attach foam boards or reflective insulation directly to the walls. Make sure surfaces are clean and dry for proper bonding.

3. Is it worth insulating a shed I only use in summer?
Even in summer, insulation helps regulate temperature, especially preventing overheating. Lightweight, reflective materials can keep the shed cooler and more comfortable for occasional or seasonal use.

4. Can I insulate a damp shed, or should I fix moisture issues first?
Always address moisture problems before insulating. Insulation traps heat and can also trap moisture, which leads to mold. Use damp-proof membranes and ensure ventilation before applying insulation.

5. How do I insulate a rented or temporary shed?
For non-permanent solutions, use reversible options like removable bubble wrap, insulation rolls held in place with clips, or foam boards that are not glued. These methods are effective and can be removed without damaging the structure.
